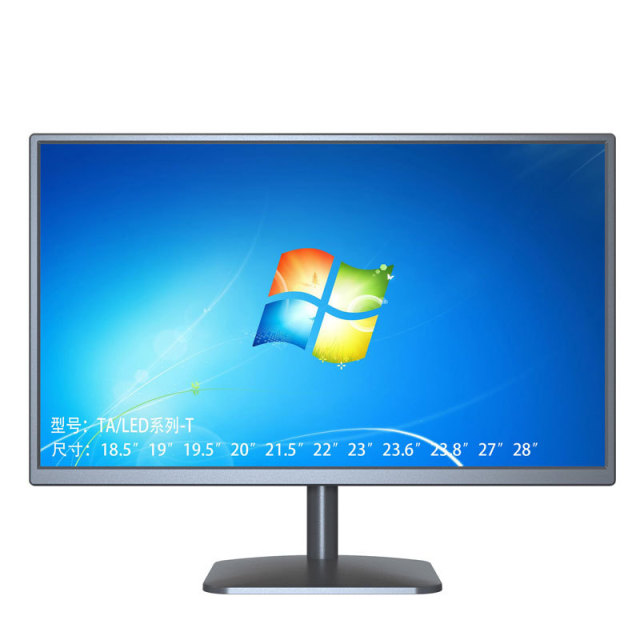

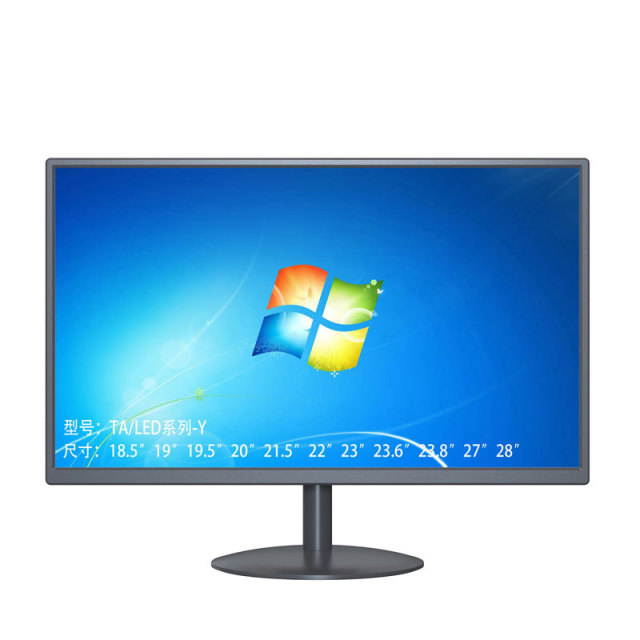

The series is mainly used in the office field, with a 19-32 inch straight face
LCD panel, which can be selected in multiple sizes and styles.
Size: 19’’/22’’/24’’/27’’/32’’ available
|
Panel |
Screen Size |
23.8 inch |
|
Panel Type |
Flat -VA / IPS |
|
|
Aspect Ratio |
16:9 |
|
|
Brightness |
200-300cd/m2 |
|
|
Contrast Ratio |
3000:1/4000:1 |
|
|
Resolution |
1920 x 1080/2560*1440/3840*2160 |
|
|
Refresh rate |
75Hz/144Hz |
|
|
Response Time |
5ms/8ms |
|
|

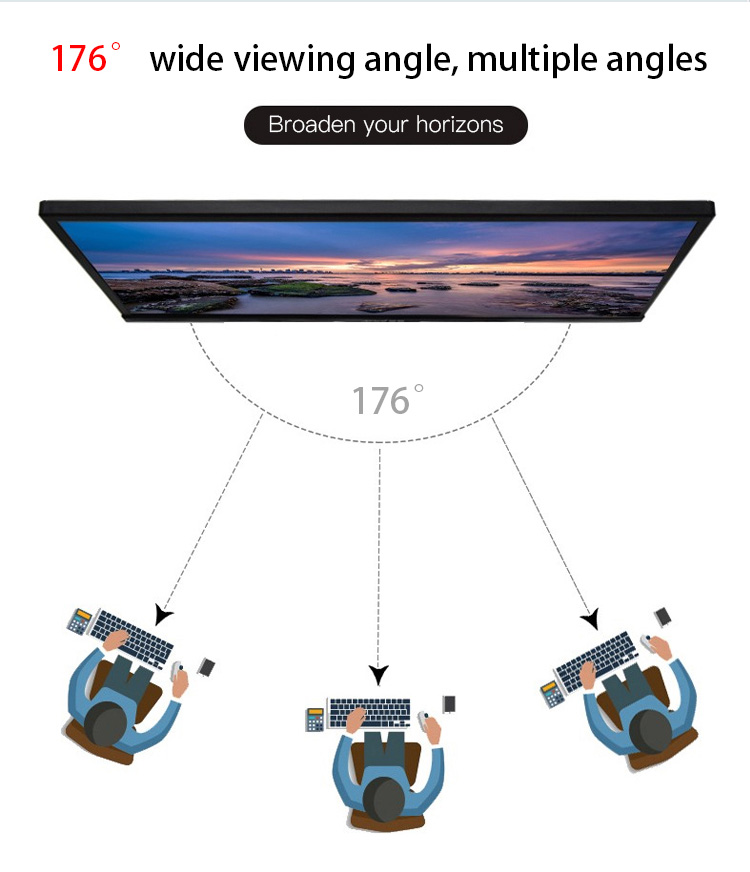

Viewing Angle |
178°/178° |
|
|
Color Support |
16.7M （ 8 bit/ 10bit） |
|
|
Dot Pitch |
0.2745mm x 0.2745mm |
|
|
Operation |

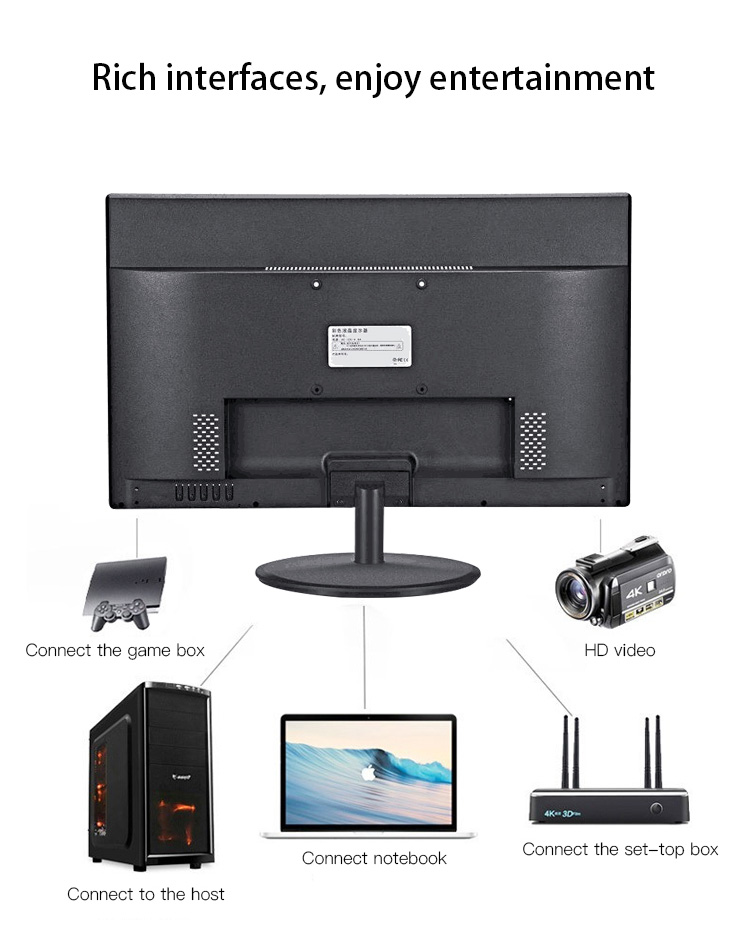

Interface Input |
DC IN, HDMI/ VGA/DP/USB/Type-C |
|
Optional Functions |
Speaker/Lighting effect/Lifting base |
|
|
Power |
Power Consumption (MAX) |
≤48w |
|
Internal Power supply |
AC110~240V, DC 12V/5A |
|
|
Stand By Power (DPMS) |
<=0.5w |
|
|
Temperature |
Operating Temperature |
0 ~ 50 °C |
|
Storage Temperature |
-20°C - 60°C |
|
|
VESA Mount |
75*75mm / 100*100mm |
|
|
Language |
English French German Russian Portuguese , 5 language Optional（can be customized） |
|
|
Accessories |
Adapter, HD Cable, Base, User Manual |
|
|
Product Size |
With Base |
545*406*168mm |
|
Without Base |
545*320*43mm |
|
|
Carton Size |
595*116*385mm |
|
|
Product Weight |
Net Weight |
3.2Kg |
|
Gross Weight |
4.5Kg |
|
|
Warranty |
One year |
|
